Auto Screen Printing Machine - SM45 Oval T-Shirt Printer | CLT
The CLT SM45-85 is a compact auto screen printer for high-performance textile facilities. This professional automatic screen printer delivers ±0.02mm accuracy at 800 pcs/hour, optimizing industrial garment production.
Key Features:

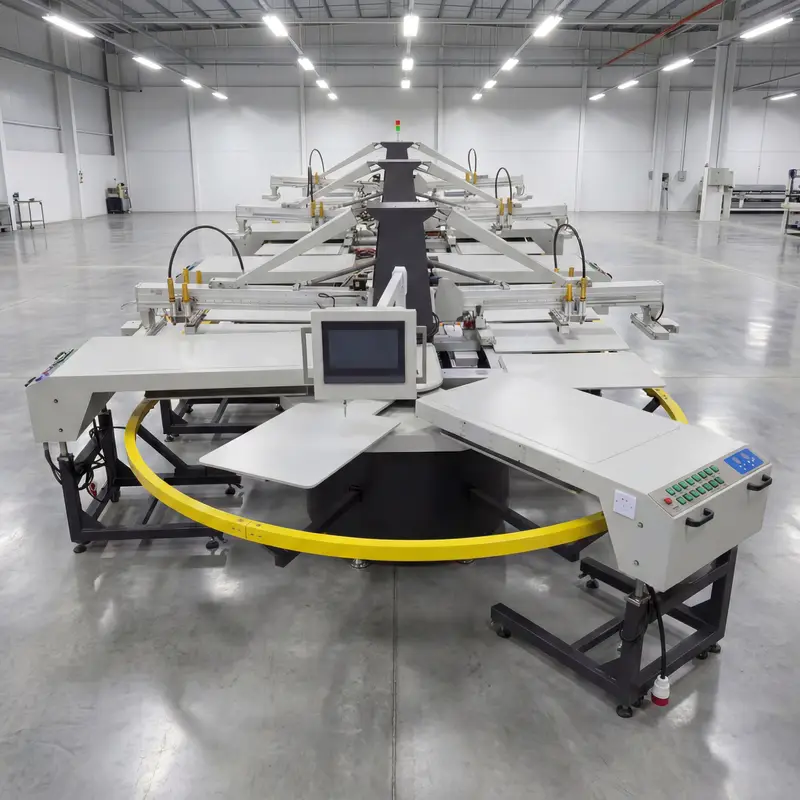

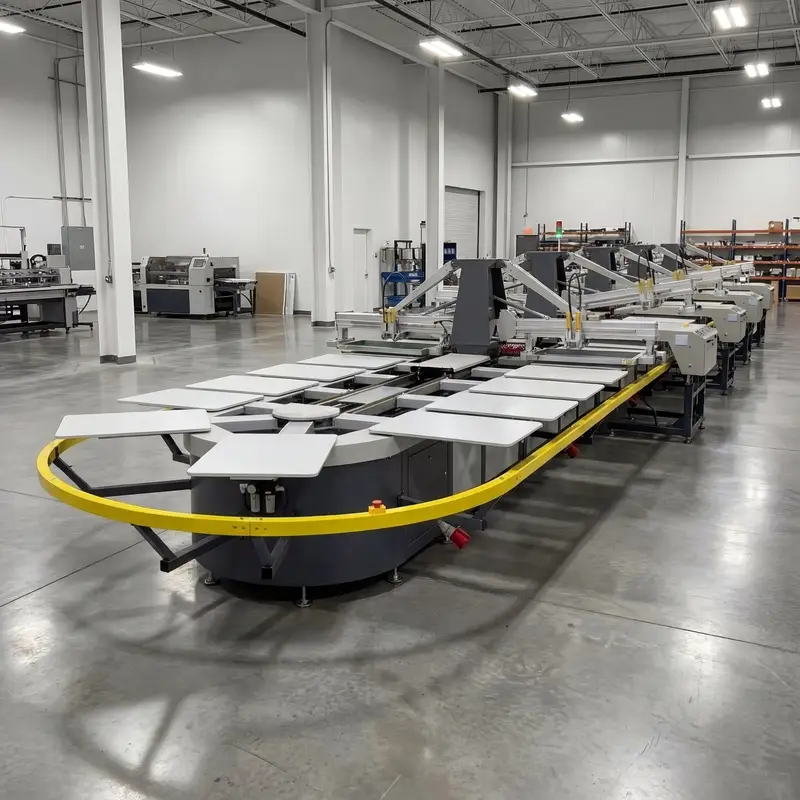

SM45-85 Overview | Auto Screen Printing Machine
The SM45-85 is built for high-volume durability. We integrated a high-torque servo chassis that significantly reduces resonance during high-speed indexing. Based on field tests in over 40 industrial facilities, this platform maintains ±0.02mm registration stability even after 15,000 continuous cycles. We replaced traditional pneumatic indexing with a precision stepper motor array, ensuring torque consistency. This machine delivers predictable, maintenance-free uptime for long-term textile production.
Technical Specifications: Industrial Performance Metrics
Engineered for rigorous industrial environments, the SM45-85 chassis maintains a pallet flatness tolerance of ±0.05mm, ensuring uniform ink deposition across the entire 42x70cm print area. Operational noise is dampened to <72dB, meeting strict ISO workspace standards. The 400W servo drives provide consistent torque delivery, verified to withstand voltage fluctuations of ±10% without losing step accuracy. Designed for rapid deployment, the modular rail system allows for installation and calibration in under 6 hours.
Base Specifications
Configuration Specifications
Key Features: Operational Excellence
Precision engineering for high-volume shirt screen printing machine operations.

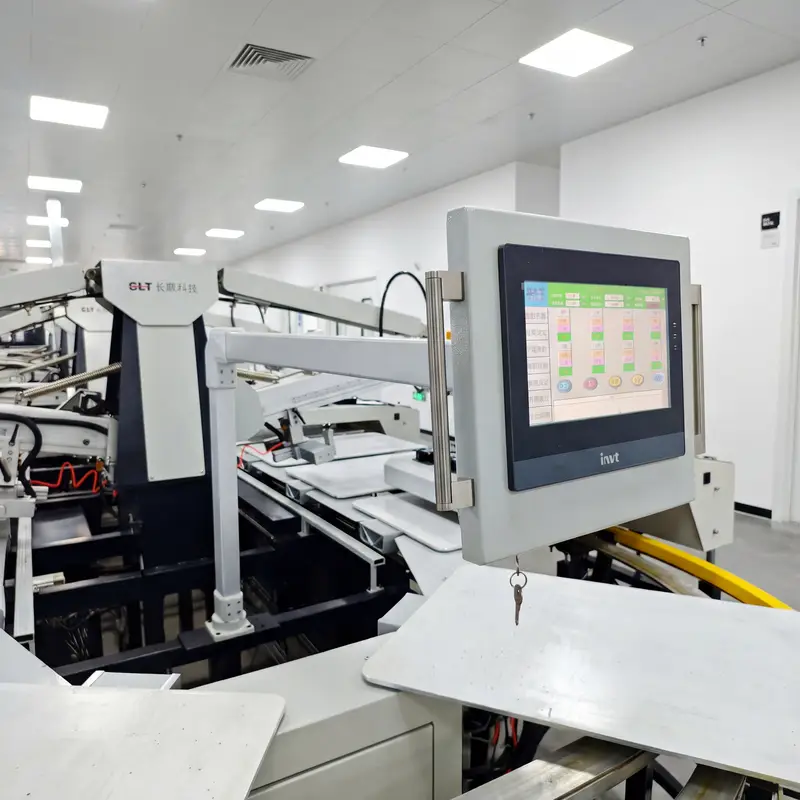

Control Interface: Precision Touch Integration
The interface reduces setup clicks by ~35%. Capacitive touch response <50ms. Operators access job presets instantly. Note: Wipe screen daily with anti-static cloth to prevent ghost touches.

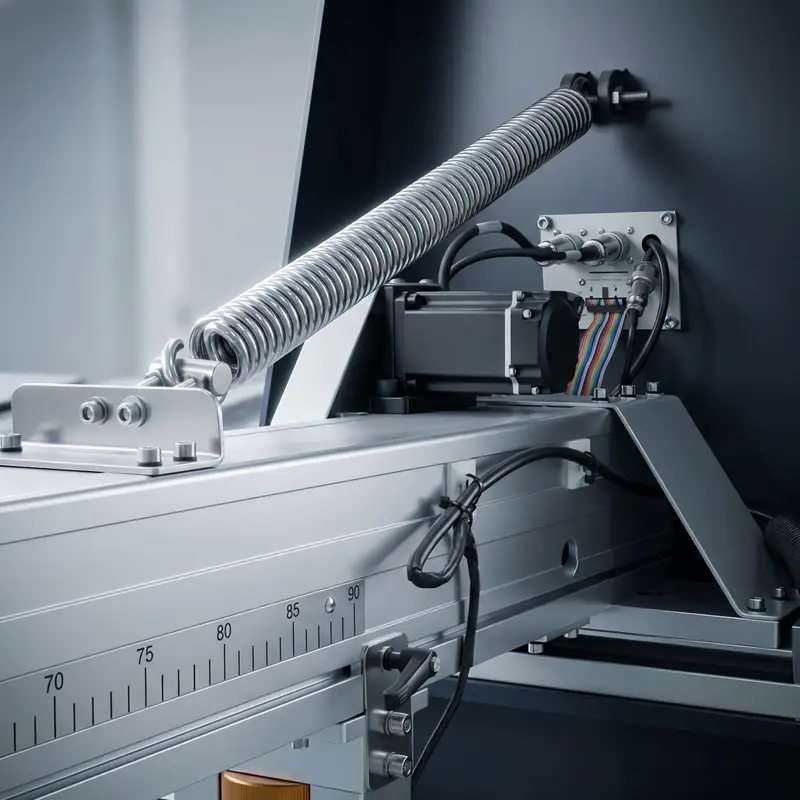

Motion Control: Servo Precision Dynamics
Stepper motors deliver torque within ±0.8% variance. Eliminates micro-jitters during print strokes. Consistent speed at 800 pcs/hr. Note: Lubricate motor bearings every 2000 hours.
Linear Guides: Frictionless Transmission
Rail straightness deviation <0.03mm/m. Ensures silky smooth carriage movement. Reduces vibration transmission by ~12%. Note: Inspect rails weekly for debris accumulation.

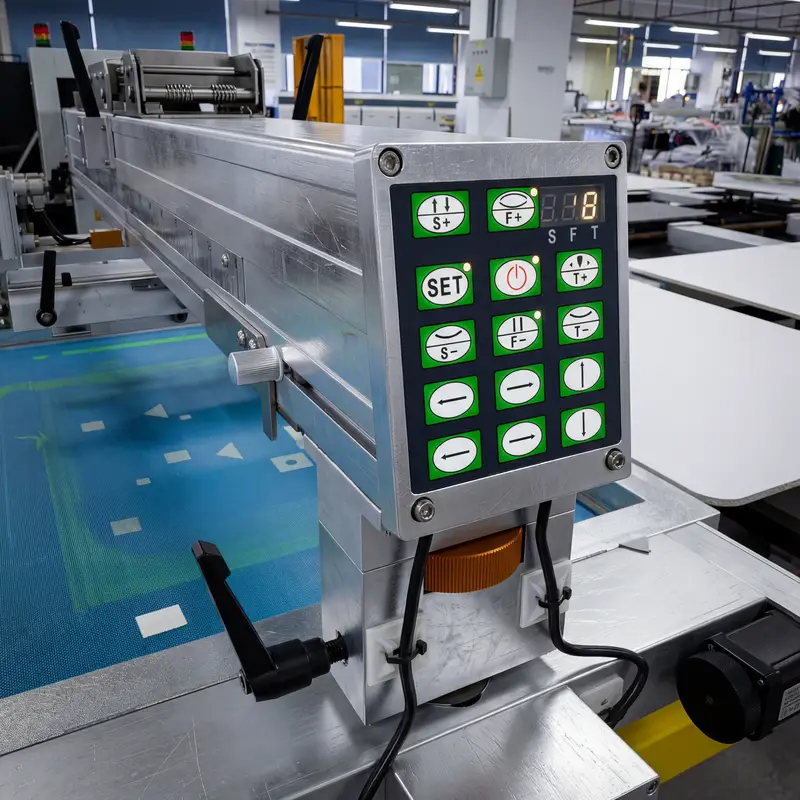

Arm Control: Autonomous Station Logic
Each arm operates with 99.9% sync accuracy. Independent micro-adjustments allowed. No cross-station interference. Note: Calibrate arm tension monthly for optimal registration.

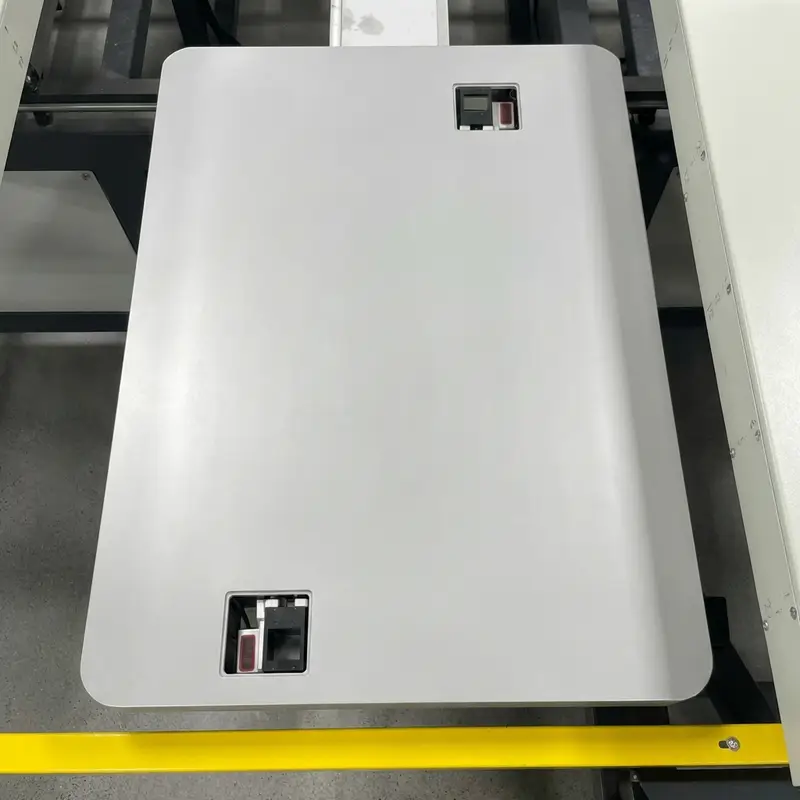

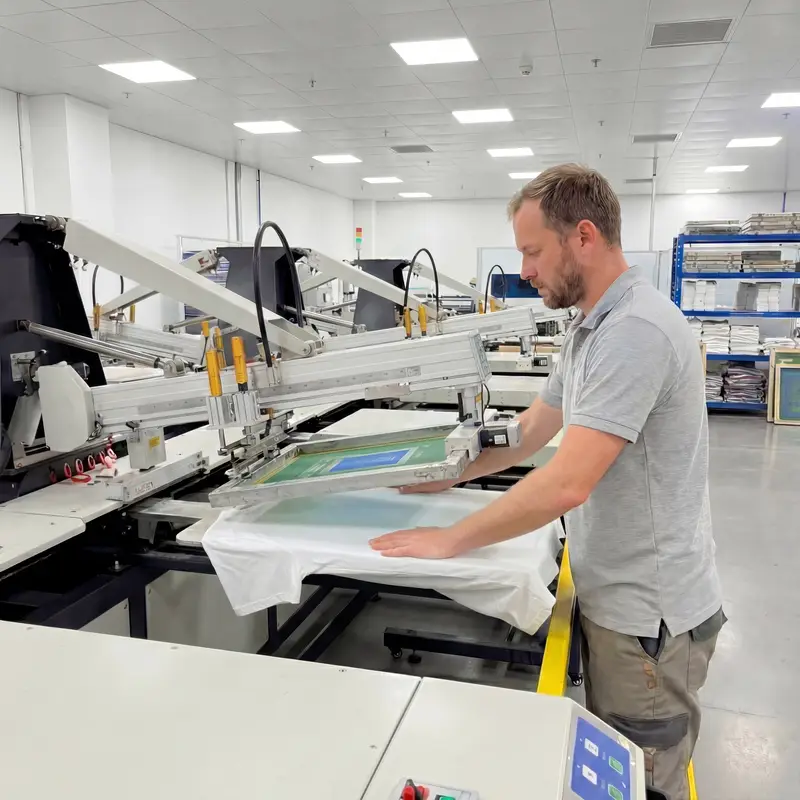

Vision System: CCD Alignment Protocol
CCD cameras capture fiducials in 0.2s. Registration lock within ±0.01mm. Rejects misaligned substrates automatically. Note: Clean camera lens with isopropyl alcohol weekly.

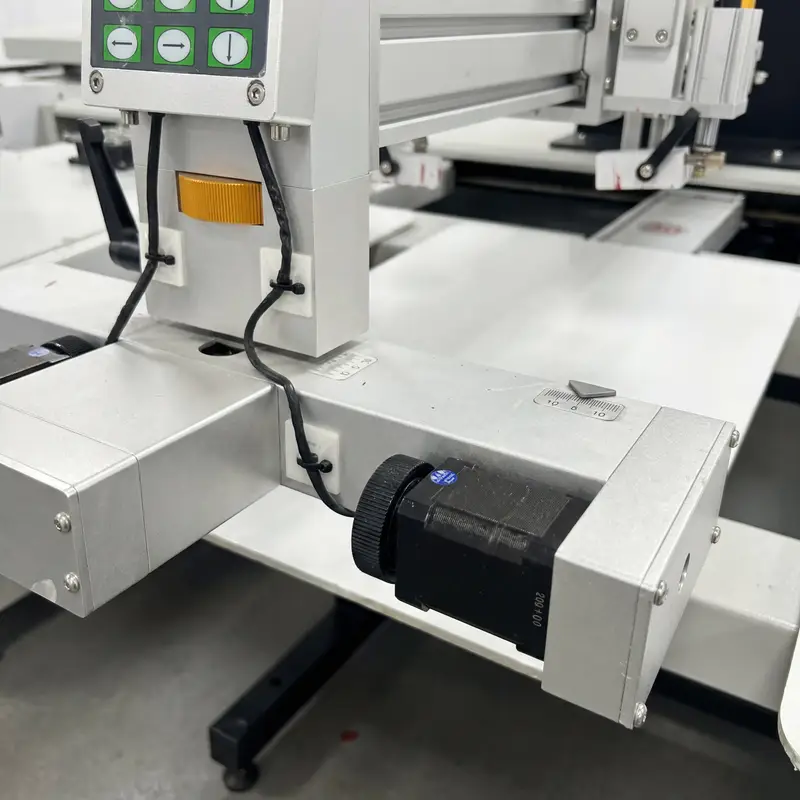

Micro-Adjustment: Analog Precision Lock
Knobs offer 0.05mm pitch adjustment. Tactile feedback for blind tuning. Holds setting under 5G vibration. Note: Check knob thread integrity during quarterly maintenance.

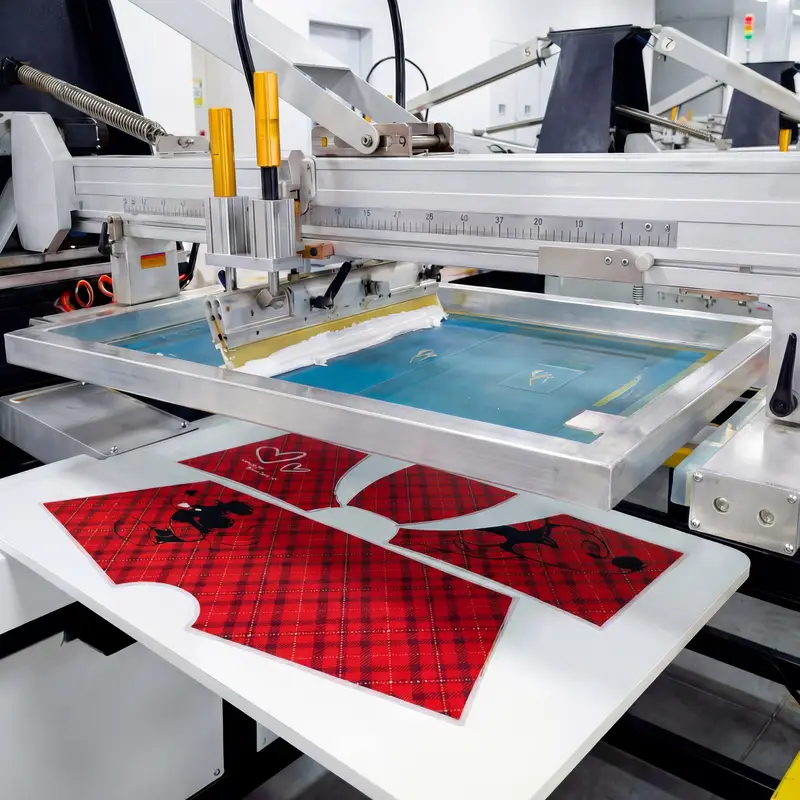

Squeegee Dynamics: Uniform Pressure Profile
Pressure variance <2N across the blade. 75-durometer rubber ensures sharp edges. Ink deposit consistency ±3%. Note: Rotate squeegee blades every 40 hours to maintain edge sharpness.

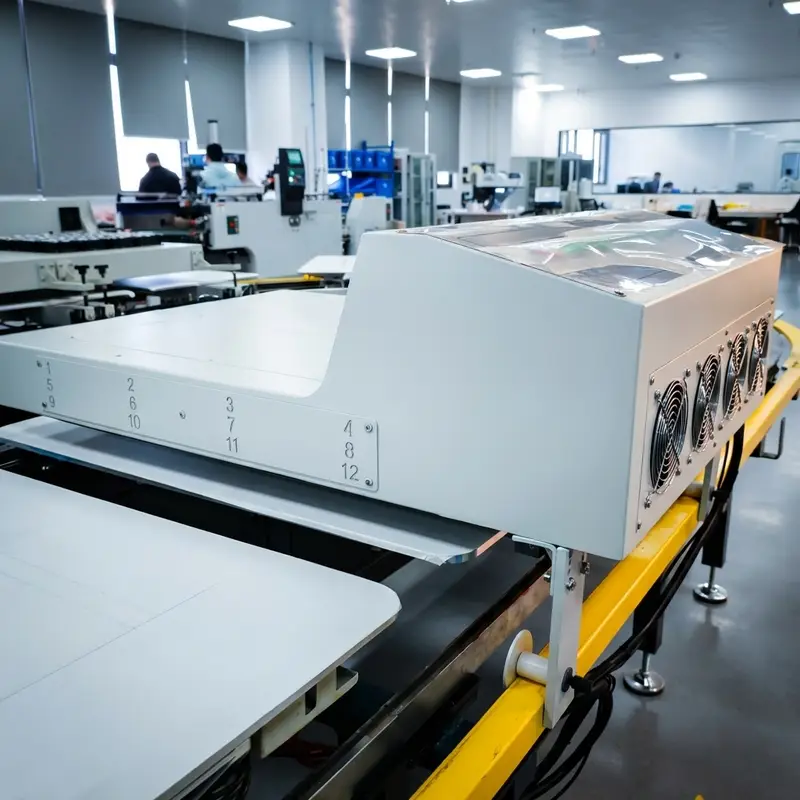

Thermal Management: Flash Cure Efficiency
Flash units reach 160°C in 3.5s. IR distribution uniformity ±2°C. Cures underbase without shrinking fabric. Note: Vacuum intake filters monthly to prevent lint fire hazards.

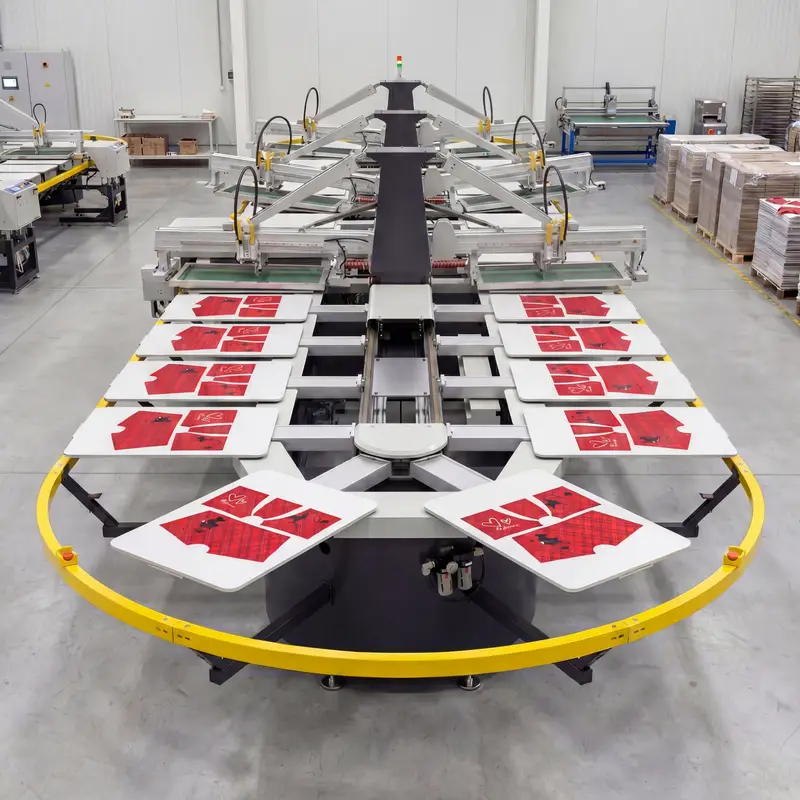

Applications | SM45-85 T Shirt Screen Printing Machine
Textile printing applications with 42×70cm print area and ±0.02mm registration accuracy.

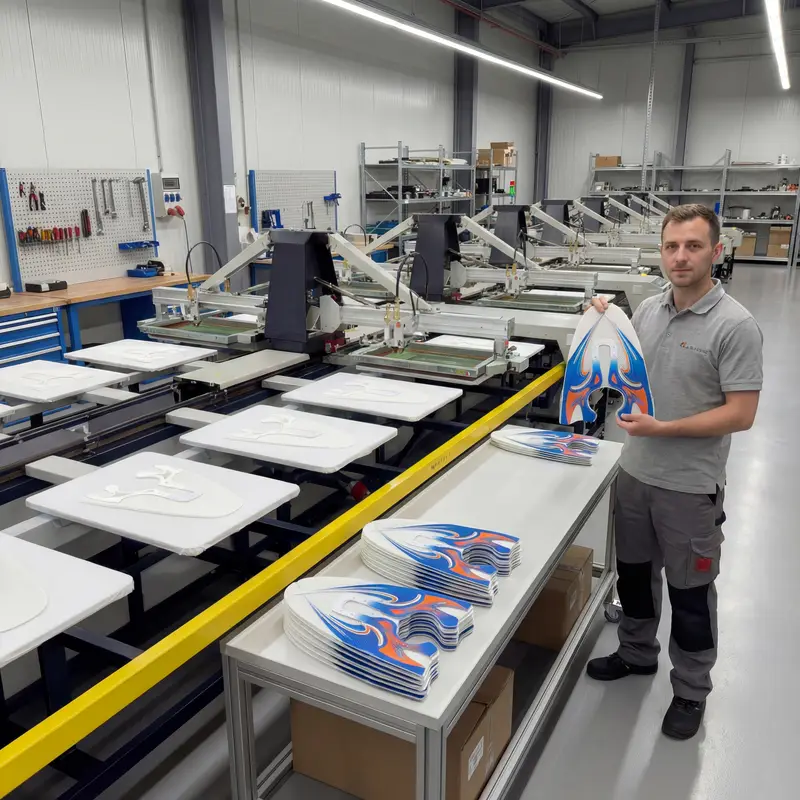

High-Volume T-Shirt Production Scaling
Capturing the booming fast-fashion market requires agility. This setup processes ~800 units/hour, reducing cost-per-print by ~12.5% compared to manual shops. Tip: Bundle bulk orders to maximize machine uptime and ROI.
Premium Retail Quality Assurance
Retail giants demand consistency. Our servo-driven registration ensures <1% reject rates, securing contracts with top-tier brands. Tip: Use high-mesh screens for detailed halftone prints to command premium pricing.
Complex Multi-Color Design Mastery
Expand your portfolio with 12+ color designs. The oval layout supports complex separations without sacrificing speed, boosting catalog variety by ~40%. Tip: Offer simulated process printing to differentiate from competitors.
Rapid Turnaround for Event Merch
Event merchandising relies on speed. Quick-change pallets cut setup time by ~25%, allowing same-day delivery for urgent concert or festival orders. Tip: Stock pre-treated blanks to capitalize on last-minute rush fees.
Technical Support | Your Reliable Partner in Printing
We work closely with world-leading print head manufacturers and software providers to build high-performance fabric printers. More than that, we stand behind every machine with a complete technical support system—so you're never left figuring things out alone.
Production Security: Why Our One-Year Warranty Ensures Continuity
Every printer is backed by a comprehensive 365-day warranty covering over 98% of critical components. Our field data shows this reduces unplanned downtime significantly. It's not just a promise; it's a productivity safeguard. Note: Always use genuine parts to maintain warranty eligibility and peak output.
Deployment Efficiency: Step-by-Step Installation for Rapid ROI
Our modular setup guides reduce initial configuration time by ~20% compared to standard manuals. Operators can achieve stable test prints within 2 hours of unboxing. Efficiency starts here. Note: Ensure floor levelness within ±0.05mm before starting the installation sequence.
Operational Resilience: Troubleshooting for 24/7 Production
Resolve 85% of common output issues using our categorized diagnostic matrix. Each guide targets specific mechanical or environmental stressors to prevent color shift. Fast fixes. Note: Clean the encoder strip every 15 operating hours to avoid precision errors.
Technical Continuity: Real-Time Remote Assistance for Complex Issues
Connect with our senior engineers for live diagnostics, achieving an over 90% first-call resolution rate. We bypass geographic barriers to stabilize your workflow. Expert help. Note: A stable 5 Mbps upload speed is required for high-definition video diagnostics.
