Eco-friendly Shoe Material Thick Plate Paste 811C-31 | CLT

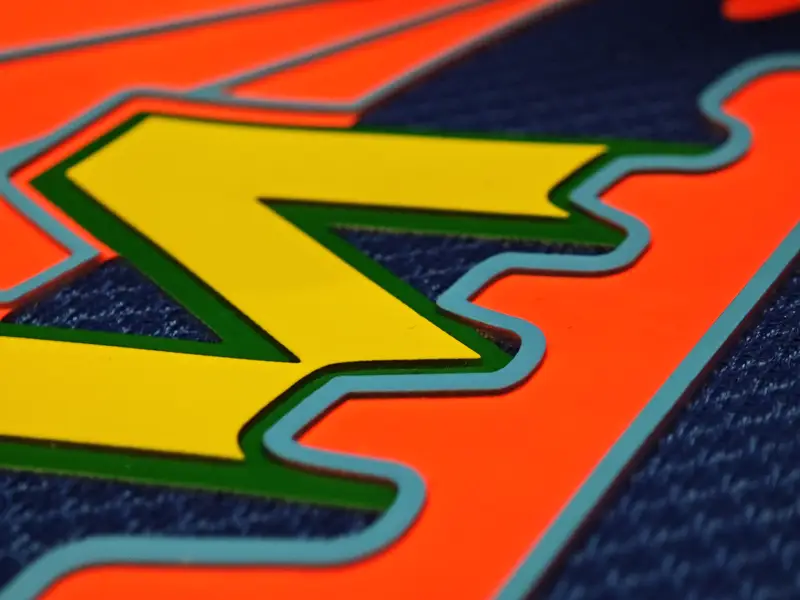

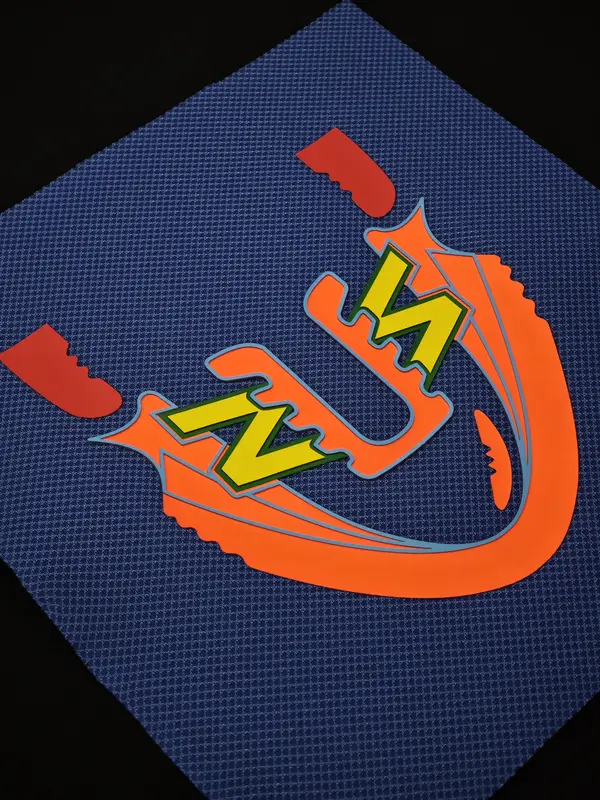

CLT 811C-31 is a professional-grade water-based thick plate paste specifically engineered for high-end athletic footwear and leather printing. It features excellent fastness, high build (thick plate) capability, and exceptional freeze and flex resistance. Ideal for manual and machine printing on challenging substrates like TPU, PU, and EVA.
Key Features:
Technical Specifications | 811C-31 Shoe Thick Plate Paste
Detailed technical and compliance specifications for CLT 811C-31 thick plate paste.
Product Specifications
Printing Guide | 811C-31 Shoe Thick Plate Paste
Recommended conditions and process steps for CLT 811C-31 shoe material paste.
Printing Conditions
| Humidity | 50-80% (optimal) |
| Temperature | Monitor temperature effects on operation |
| Squeegee Hardness | 75 degree (oil-based) |
| Mesh Count | 80-130 mesh |
| Curing Temperature | 50-60°C |
| Curing Time | 6-8 hours |
Printing Process
Add 5% PC-200-2 cross-linker to 811C-31. Stir thoroughly and use within 5-7 hours.
For difficult substrates like natural leather, apply varnish underbase first. Print 811C-31 (e.g., 12 passes for thick plate effect).
Cure/dry at 50-60°C for 6-8 hours. If dry/wet rubbing fastness > Grade 4 is required, top coat with M1204 paste.
Eco-Friendly Certifications & Test Results
CLT 811C-31 safety compliance and environmental certification status.
Certifications
GB 18401
Chinese textile safety standard
OEKO-TEX 100
International textile safety standard
Adidas A-01
Adidas restricted substances list
Nike RSL
Nike restricted substances list
Harmful Substance Test Results
| Parameter | Value | Standard |
|---|---|---|
| Formaldehyde | <20 ppm | OEKO-TEX 100 |
| Soluble Heavy Metals | PASS | Adidas A-01 |
| AZO Dyes | PASS | OEKO-TEX 100 |
| APEO | PASS | OEKO-TEX 100 |
| Phthalates | PASS | OEKO-TEX 100 |
Finished Product Performance
Performance metrics for CLT 811C-31 thick plate paste on 100% cotton fabric.
Test Conditions
Fabric
100% Cotton
Printing Method
12 passes, 3 strokes each
Curing Condition
50-60°C × 6-8 hours
Performance Metrics
Softness
Grade 3
5-grade scale (5=very soft, 1=hard)
Elasticity
Grade 5
5-grade scale (5=excellent, 1=poor)
Yellowing Resistance
Grade 4.5-5
300W/24 hours
Aging Resistance
Grade 4.5-5
50°C/72 hours
Room Temp Flex Resistance
600,000 cycles
Tested after 24h at room temp
-20°C Flex Resistance
100,000 cycles
Tested after 24h at -20°C
Machine Wash Fastness
Pass
60°C wash cycles; wash & dry ×5
Formulation & Auxiliaries
Mandatory cross-linker and optional auxiliary instructions for CLT 811C-31.
Auxiliary Agents
Cross-linker (PC-200-2)
Usage
5%
Purpose
Mandatory for adhesion and fastness
Notes
Use within 5-7 hours after mixing to avoid thickening or clumping.
Varnish Underbase
Usage
As needed
Purpose
Improve adhesion on natural leather or difficult substrates
Notes
Recommended for high-performance leather prints.
Top Coat Paste (M1204)
Usage
As top coat
Purpose
Achieve dry/wet rubbing fastness > Grade 4
Notes
Apply as a final layer if high rubbing resistance is required.
Storage & Shelf Life
Storage instructions for maintaining the stability of CLT 811C-31 thick plate paste.
Storage Conditions
Temperature
5-35°C
Humidity
Cool and ventilated place
Sealing
Keep container tightly sealed
Shelf Life
10 months from manufacturing date
Important Warnings
- ⚠Mandatory use of PC-200-2 cross-linker. Do not skip.
- ⚠Short pot life (5-7 hours) after adding cross-linker. Plan production accordingly.
- ⚠Stir thoroughly before use.
- ⚠Test compatibility when overprinting other water-based or oil-based inks to avoid delamination.
